    Suggested restoration of water-wheel

    Thumbnail
    View/Open
    Author
    Walton, James, 1911-1999
    Date Created
    1974
    Rights
    This item is subject to copyright protection. Reproduction of the content, or any part of it, other than for research, academic or non-commercial use is prohibited without prior consent from the copyright holder.
    Copyright James Walton
    Metadata
    Show full item record
    Abstract

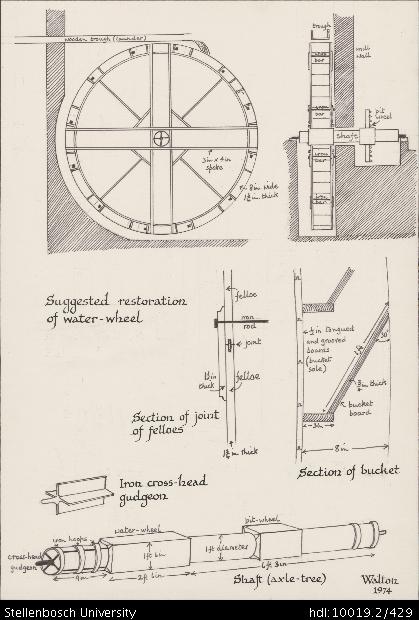

    Drawing of the suggested restoration of a water-wheel, depicting detail of a wooden trough (launder), a 3 in x 4 in spoke, a trough, 4 iron bars, a shaft, a mill wall and a pit wheel. Details are also provided of a section of a joint of felloes, depicting 2 felloes, an iron rod and a joint. A section of a bucket, depicting ½ in tongued and grooved boards (bucket sole) and a ¾ in thick bucket board. An iron cross-head gudgeon and a shaft (axle-tree), depicting a cross-head gudgeon, iron hoops, a water-wheel and a bit-wheel.
